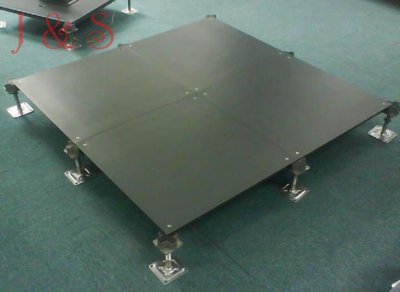

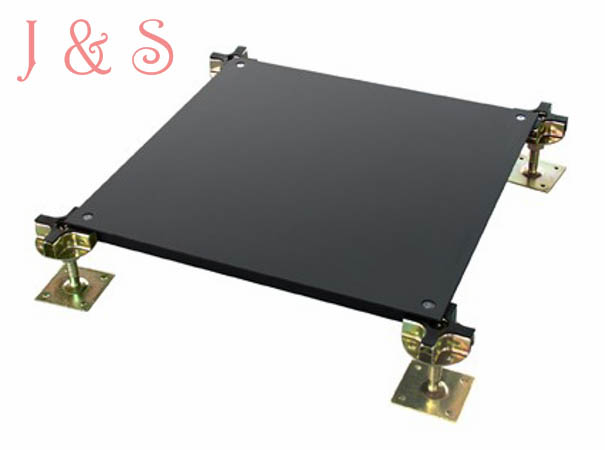

Bare Panel
Details
Model (1) SC800, (2) SC1000, (3) SC1250
Size 600mm x 600mm
Thickness 35mm
Finished Height 80mm - 1000mm

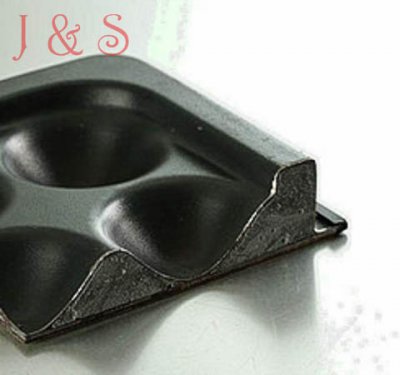

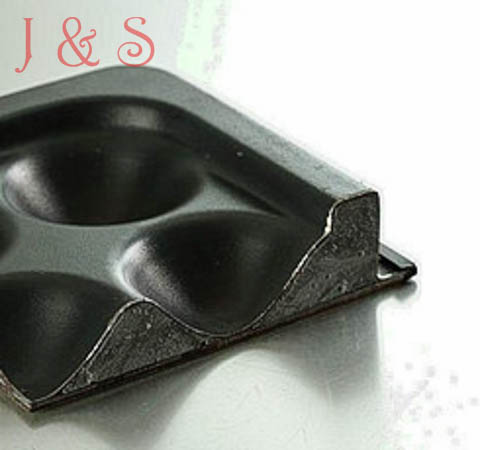

Panel Filler Cementitious
Uniform Load (均佈載荷) (1) SC800: ≧ 19796 N/m²; (2) SC1000: ≧ 23294 N/m²; (3) SC1250: ≧ 33084 N/m²
Concentrated Load (集中載荷) (1) SC800: ≧ 3596N; (2) SC1000: ≧ 4498N; (3) SC1250: 5595N
Ultimate Load 極限載荷 (1) SC800: ≧ 10799N; (2) SC1000: ≧ 13494N; (3) SC1250: ≧ 16797N
Rolling Load (滾動載荷) (1) SC 800: 2959/10次, 2215/10000次; (2) SC1000: 3596/10次, 2959/10000次; (3) SC1250: 4498/10次, 3596/10000次
Top Finish NIL

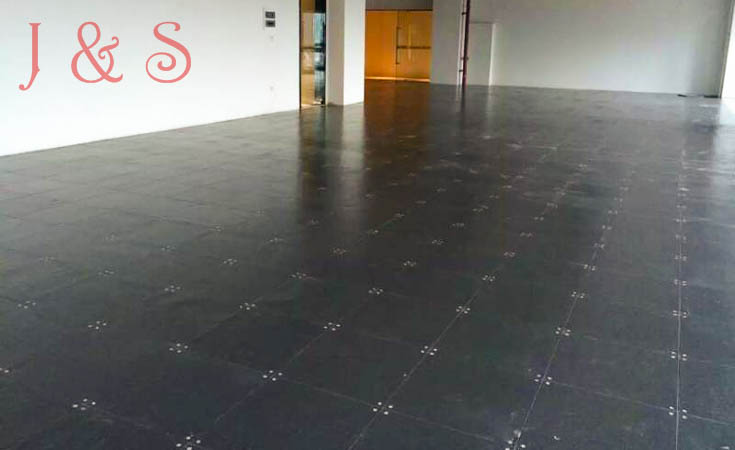

Applications Server Room / Data Center / General Office etc...
Lead Time 1 - 3 Weeks
# Remark Please check stock before ordering / 落單前請先查貨存
